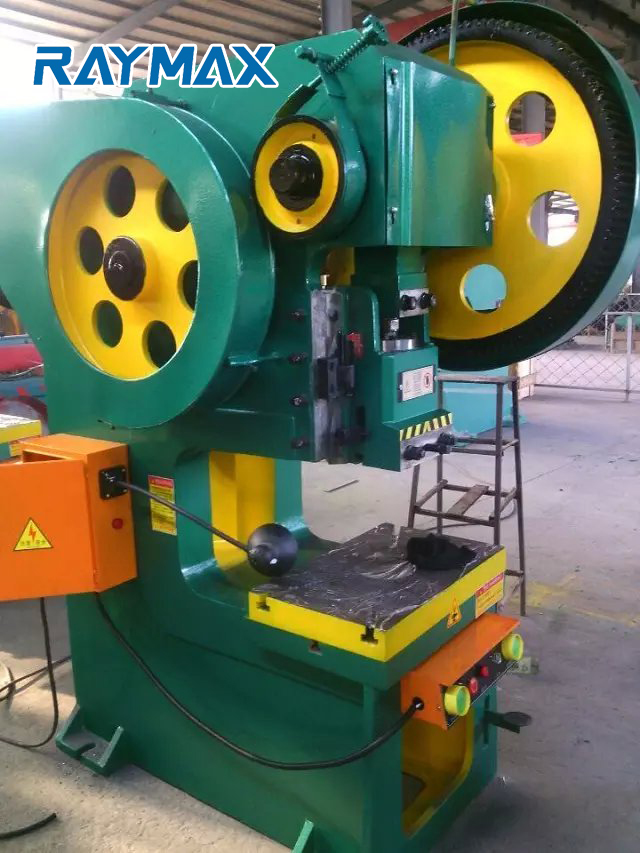

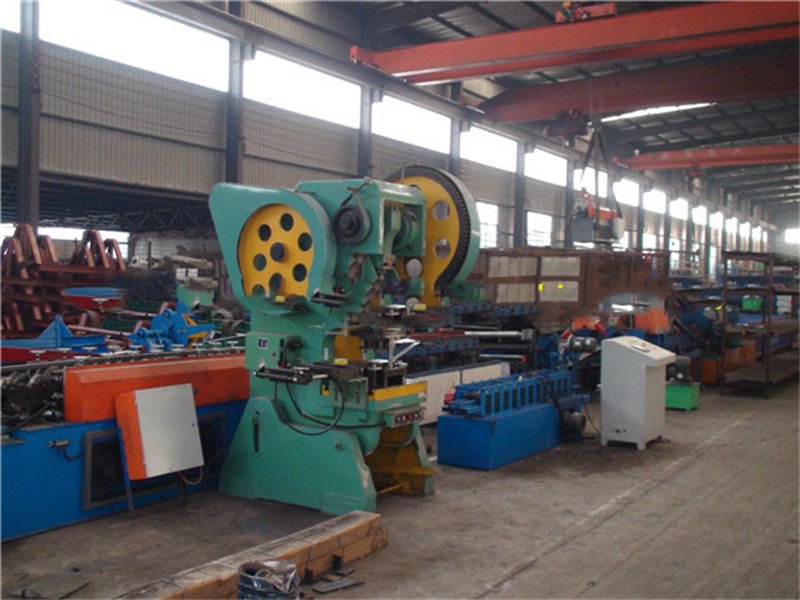

J23 High Precision power press Electric junction making metal box making press machine with high speed

Application of JB23 Series Open Tilting Press

*Suitable for blanking, punching, forming, bending, shallow drawing and other cold stamping processes.

*Widely used in electronic components, instruments, hardware tools, toys, vehicles, machinery, home appliances and other industrial fields.

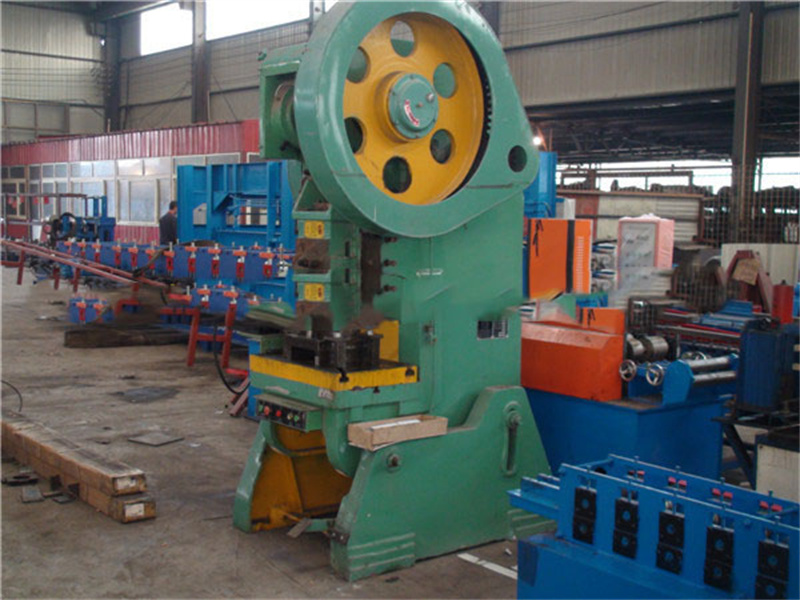

1. Structure

*Foundry fuselage, stable performance.

*Type C fuselage, open tilting, good workspace, favorable for punching parts and scrap sliding.

*The rigid rotary clutch has simple structure.

* Belt brake, easy to adjust.

*Collapse type safety device to ensure that the whole machine is not damaged by overloading.

*The crankshaft is laid out horizontally, which is convenient for maintenance.

2.Characteristic

* Good versatility, simple structure, easy operation and maintenance.

* Economic press

		J23-6.3	J23-10	J23-16	J23-25
Capacitate	kN	63	100	160	250
Forța nominală	mm	3	4	5	5
Cursa de diapozitiv	mm	35	60	55	80
SPM	min-1	170	145	125	60
Max. Înălțimea morții	mm	110	130	160	180
Reglarea înălțimii matriței	mm	30	35	45	70
Între Slide Center și Frame	mm	110	130	160	210
Suport (FB×LR)	mm	200×310	240×360	300×450	400×600
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)	mm	Φ60	Φ120×20 ×Φ100	Φ100	Φ120
Grosimea suportului	mm	40	50	40	70
Bolster Opening (Dia.×FB×LR)	mm	Φ140×110×160	Φ130×90×180	Φ210×160×240	Φ180×130 ×260
Zona de diapozitive (FB×LR)	mm	120×140	150×170	180×200	210×250
Orificiu tijă (Dia.×Dpth)	mm	Φ30×55	Φ30×55	Φ40×60	Φ40×70
Max. Inclined Angle	°	30°	25°	25°	25°
Între Coloane	mm	150	180	220	260
Puterea motorului	kW	0.75	1.1	1.5	2.2
Dimensiune contur (FB×LR×H)	mm	780×610 ×1505	915×700 ×1690	1150×900 ×1910	1325×990 ×2140
Greutate netă	kg	360	600	1080	1900
